Modern PAF humbucker

From: 170.00

Modern PAF humbucker

From: 170.00

a custom Alnico 2 raw cast gives an evident Vintage ” temper ” and is melt following precise chemical and magnetical poperties.

complex articulation of trebles and a great dynamic range of mids shades, thick attack, smooth powerful bass and balanced definition of every string.

Immediate touch response from strings and pots, mellow limpid voice with excellent sustain and full armonic overtones.

DCR circa

  • neck 9 k
  • bridge 10 k

(1 customer review)

Additional information


Bee, black, cream, white, zebra

copper wire

Heavy formvar 43 awg, Plain enamel 42 awg, Plain enamel 43 awg


alnico 2 bar

output leads

4-Conductor Wire

pole spacing

50 mm ptp, 50/50 set, 50/52 set, 50/53 set (F-spaced), 52 mm ptp, 53 mm


wax potted


short legs baseplate

Our modern PAF + is built to have a proper split coil resistance ( screw bobbin ) still trying to keep a low output DCR, so is wound with a thinner copper wire (awg43), while the slug coil keeps the classic vintage gauge and insulation ( plain enamel 42 ) with a slightly lower resistance.

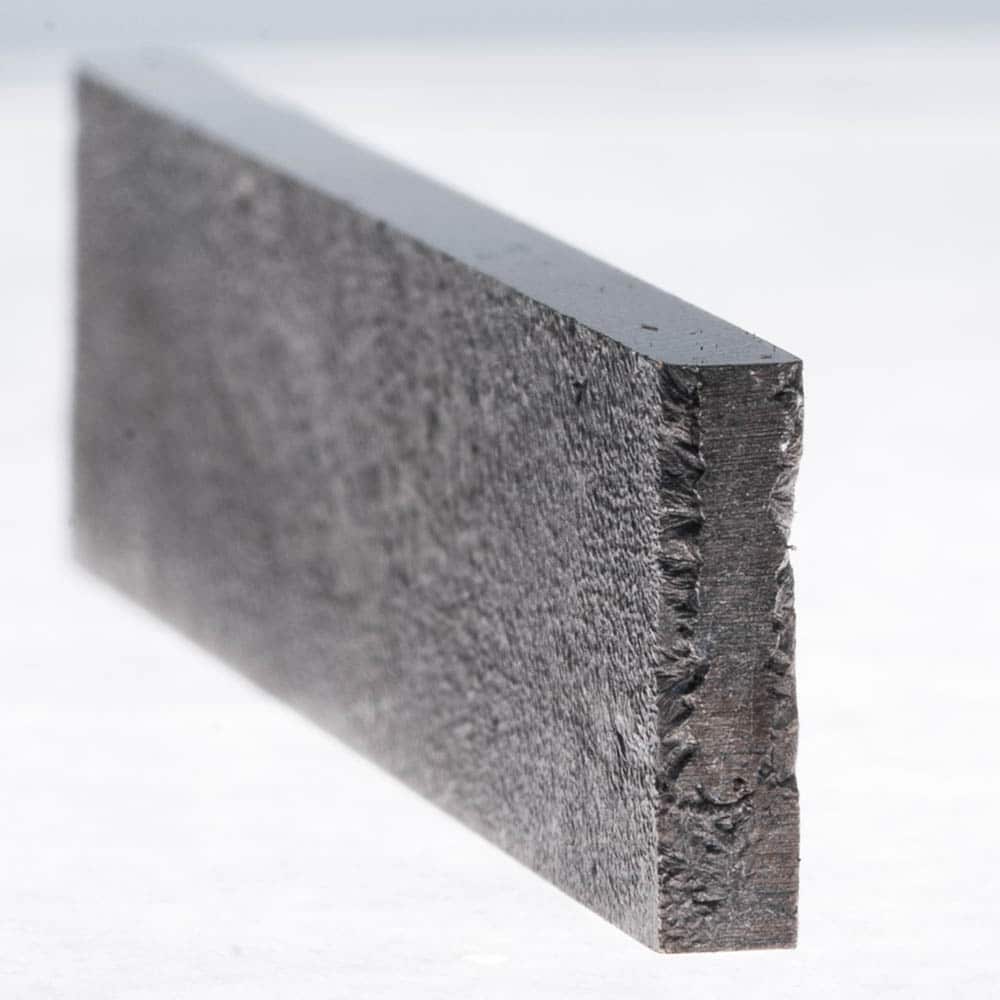

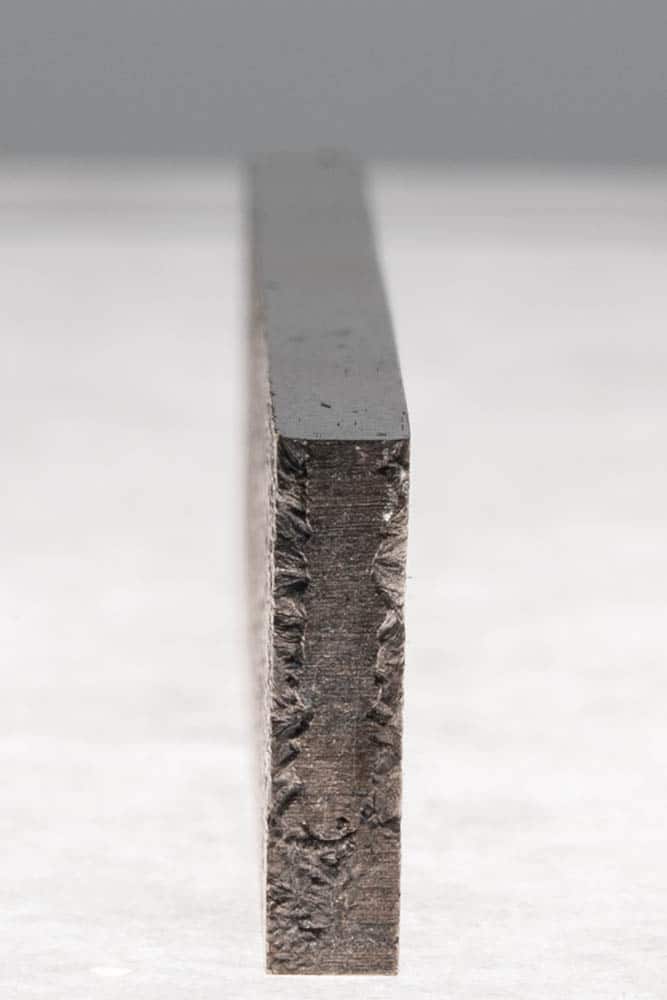

The alnico 2 bar give to the split coil a sweet smooth voice and add more clarity in full mode HB.

Usually the full HB neck comes at 9k and the proportion is around 65/35 % so screws coil will be 6k and slugs one 3k.

Bridge as well is an hybrid of the same two insulations and gauges and the split coil is around 6,5 k while the slugs one measures 3,5 k for a total of approx 10 k dcr.

The humbucker is built with unbalanced coil so the tone is versatile in every scenario, more mids in the main coil that gets more presence, sided by the wide tone of the low output one.

Always super sensitive & a little warmer, complex tone with a clear and deep voice, versatile split and great body in the full mode.




Secure payments

pay by credit card

Multiples way to pay

pay by payPal

100% garantee

or full refund

Follow Us

1 review for Modern PAF humbucker

  1. Amedeo Lasco

    I Modern Paf sono dei pickup che hanno soddisfatto appieno le mie esigenze. Volevo uno split coil che in termini di potenza e di timbrica fosse paragonabile a un single col vero e proprio, e il modern paf mi ha dato questa possibilità. Il suono dell’humbucker pieno è inoltre “canterino” e “setoso” evidenziando i componenti di qualità usati per la costruzione dei pickup.
